iDLS-Demo - Instrumento de Suporte à Descida e Aterragem de Missões Planetárias
The main goal of iDLS-Demo is to develop, construction and qualification for space of a commercial instrument for visual navigation, automated obstacles detection and safe landing site selection (iDLS), in preparation for its integration and in-orbit demonstration in a real lunar landing mission.
Summary
Activities
- Project Technical Management
- Requirements Analysis and Preliminary Design
- Detailed Design
- Incremental Testing (Simulation, Lab, Flight)
- Prototype Integration, Test and Verification
- Qualification & Preparation for Lunar Flight
- Commercial Strategy, Promotion & Outreach
iDLS-Demo Overview
The project aims to develop, build, and qualify a commercial instrument for visual navigation, automatic obstacle detection, and landing site selection (iDLS) for deep space operation, with a view to its integration and flight in a real mission.
The hardware is derived from a Spin.Works instrument currently in orbit (the hyperspectral camera on board the AEROS nanosatellite along with its payload data processor), whereas visual navigation and automatic landing site selection algorithms developed over the course of more than one decade, including in the context of successive contracts with the European Space Agency, will be implemented. These algorithms are currently at TRL 4-6.
The instrument will be exhaustively tested using simulation, laboratory tests with a robotic arm and scaled terrain, and in flight over representative terrain aboard multicopters. The addressable market for the proposed instrument includes most private and institutional missions involving planetary descent and landing – in the short term, Moon and Mars. The potential of this instrument in the emerging space exploration market cannot be understated.

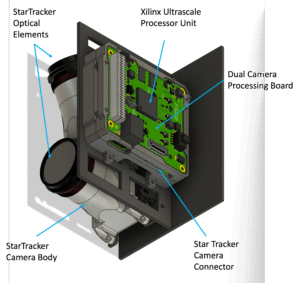

intelligent Descent and Landing System (iDLS) – Key Capabilities
- Dual Camera configuration (Side+Bottom Cameras, CMV4000 sensor w/ Global Shutter, 4MP, up to 10Hz)
- High Performance Payload Data Processor (hardware-accelerated image processing)
- High Precision Vision-based Absolute Positioning (<200m throughout the descent phase)
- Pinpoint landing capabilities (<50m from targeted site)
- Real-time Detection of hazardous surface obstacles (roughness >30cm, slopes >10º) with >99% probability
- Visual Hazard-Relative Navigation during terminal descent phases (<1km AGL)
The project will conclude with the installation of the instrument aboard a real mission of a US partner (Orbit Beyond Inc.), on a vehicle that will carry out a lunar landing mission during 2027, which will then result in a TRL of 9.
Regarding this project, it is worth noting the letters of support issued by both ESA and Orbit Beyond Inc., which indicate its relevance to the sector.
